Alignment file evaluation & cleanup (BAM)

Introduction

You are analyzing your RNA-Seq reads using a standard RNA-Seq pipeline. After performing quality control, you have utilized popular spliced aligners such as HISAT2 and STAR to align the reads to the genome. While inspecting the alignments in IGV, you have noticed that some reads are spliced and aligned across different gene loci or intergenic regions.

This raises concerns regarding the accuracy of these splice alignments and the authenticity of the reads originating from these locations. Additionally, you are curious if there is a systematic approach to validate these splice alignments. Unfortunately, there are currently no available tools that can assess the results generated by the aligners. Consequently,

Important

We propose running Splam as a new step in RNA-Seq analysis pipeline to score all splice junctions.

The power of Splam lies in its ability to filter splice alignments without relying on complex statistical rules. Instead, it utilizes our trained deep learning model to evaluate the DNA sequences surrounding the donor and acceptor sites. Splam learns the splice junction patterns. It identifies and removes splice alignments that exhibit low confidence splice junctions.

Splam offers solutions to several problems by:

  1. Distinguishing high-quality spliced alignments from those with low confidence.

  2. Providing a systematic approach to assess all splice alignments within an alignment file. Additionally, it eliminates erroneous splice alignments, thereby enhancing downstream transcriptome assembly.

  3. Potentially aiding in understanding the biases inherent in splice aligners.

  4. There are more potential usages to be explored!


Workflow overview

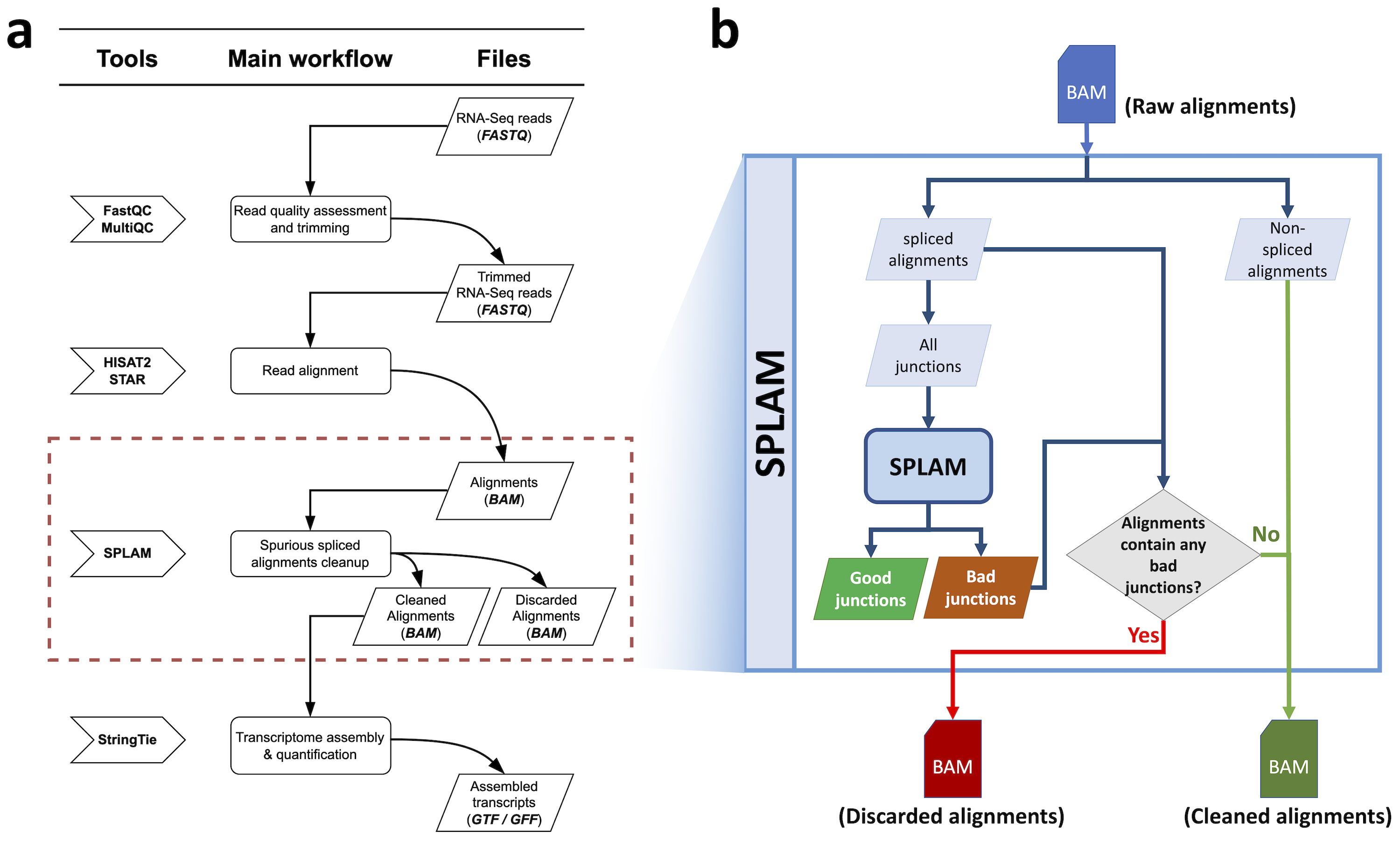

Before diving into details of each step, here is an overview of the workflow. Figure 1 (a) is the workflow of running Splam in the standard RNA-Seq pipeline, and Figure 1 (b) is the workflow of spurious splice alignment removal.

Splam takes a sorted alignment file, extracts all splice junctions, and scores all of them. Furthermore, Splam cleans up the alignment file by removing spliced alignments with poor quality splice junctions, and outputs a new sorted alignment file.

../_images/alignment_cleanup_workflow.png

Figure 1 The Splam workflow for cleaning up spurious spliced alignments in an alignment file.


Step 1: Preparing your input files

The first step is to prepare three files for Splam analysis. In this tutorial, we will be using a toy dataset.

Input files

  1. An alignment file in BAM format [example file: SRR1352129_chr9_sub.bam].

  2. A reference genome in FASTA format [example file: chr9_subset.fa].

  3. The Splam model, which you can find here: splam.pt


Step 2: Extracting splice junctions in your alignment file

In this step, you take an alignment file (1) and run

splam extract -P SRR1352129_chr9_sub.bam -o tmp_out_alignment

The primary outputs for this step is a BED file containing the coordinates of each junction and some temporary files.

Splam iterates through the BAM file, extracts all splice junctions in alignments, and writes their coordinates into a BED file. By default, the BED is written into tmp_out/junction.bed. The BED file consists of six columns: CHROM, START, END, JUNC_NAME, INTRON_NUM, and STRAND. Here are a few entries from the BED file:

Output: junction.bed

1chr9    4849549 4860125 JUNC00000007    3       +
2chr9    5923308 5924658 JUNC00000008    6       -
3chr9    5924844 5929044 JUNC00000009    8       -

Note that in this command, we run with the argument -P / --paired. This argument should be selected based on the RNA sequencing read type. There are two types of RNA sequencing read types: single-read and paired-end sequencing. For a more detailed explanation, you can refer to this page.

By default, Splam processes alignments without pairing and bundling them. If your RNA-Seq sample is single-read, there is no need to set this argument. However, if your RNA-Seq sample is from paired-end sequencing, it is highly recommended to run Splam with the -P / --paired argument. Otherwise, if an alignment is removed, the flag of its mate will not be unpaired. It is worth noting that it takes longer to pair alignments in the BAM file, but it produces more accurate flags.

Here are some optional arguments:

-P / --paired

This argument bundles and pairs alignment reads. If your sample is paired-end RNA-Seq, you should run Splam with this argument to ensure more accurate flag updates.

-n / --write-junctions-only

If you only want to extract splice junctions from the BAM file without running the subsequent cleaning step, you can use the -n / --write-junctions-only argument to skip writing out temporary files. This argument makes splice junction extraction faster!

-M / --max-splice DIST

The maximum length for splice junctions is 100,000nt by default. This means that any splice junctions in spliced alignments longer than the maximum splice junction length will be removed.

-g / --bundle-gap GAP

If you are running with a single-end RNA-Seq sample, then you do not need to worry about the -g / --bundle-gap GAP argument. However, if you are working with a paired-end RNA-Seq sample and using the -P / --paired argument, then this parameter becomes significant. The algorithm for extracting splice junctions in paired-end RNA-Seq data begins by bundling alignments. As alignments overlap, the bundle extends accordingly. Regions with no alignment coverage are referred to as “gaps.” This argument allows you to define the minimum gap size allowed within a bundle. In other words, if a gap’s length exceeds the specified minimum, the regions on the left and right-hand side of the gap are treated as two separate bundles. The default value for this argument is set to 1000nt, but you can adjust it based on your specific analysis needs.

-o / --outdir DIR

The directory where the output file is written to. The default output directory is tmp_out. You can set your own output directory using this argument.

-f / --file-format FILE_FORMAT

Splam normally detects BAM from the input extension. Use this option to specify the format explicitly.

--fr

Treat the input as an fr-secondstrand stranded library. This option cannot be combined with --rf.

--rf

Treat the input as an rf-firststrand stranded library. This option cannot be combined with --fr.


Step 3: Scoring extracted splice junctions

In this step, the goal is to score all the extracted splice junctions. To accomplish this, you will need 3 essential files. (1) The BED file that was generated in Step 2, (2) the reference genome (2) which shares coordinates with the junction BED file, and (3) the Splam model (3). Once you have these files in place, you can run the following command:

splam score -G chr9_subset.fa -m ../model/splam_script.pt -o tmp_out_alignment tmp_out_alignment/junction.bed

After this step, a new BED file is produced, featuring eight columns. Two extra columns, namely DONOR_SCORE and ACCEPTOR_SCORE, are appended to the file. It is worth noting that any unstranded introns are excluded from the output. (P.S. They might be from unstranded transcripts assembled by StringTie).

Output: junction_score.bed

1chr9    4849549 4860125 JUNC00000007    3       +       0.7723698       0.5370769
2chr9    5923308 5924658 JUNC00000008    6       -       0.9999831       0.9999958
3chr9    5924844 5929044 JUNC00000009    8       -       0.9999883       0.9999949

Here are the required arguments:

-G / --reference-genome REF.fasta

The path to the reference genome in FASTA format. Please ensure that this file shares the same coordinates as your input alignment file, which is where you align your RNA-Seq reads. Splam will handle the indexing process for you if the reference genome has not been indexed yet.

-m / --model MODEL.pt

This argument is the path to the trained Splam model. If you haven’t downloaded the Splam model yet, here is the link.

Here are some optional arguments:

-d / --device pytorch_DEV

By default, Splam automatically detects your environment and runs in cuda mode if CUDA is available. However, if your computer is running macOS, Splam will check if mps mode is available. If neither cuda nor mps are available, Splam will run in cpu mode. You can explicitly specify the mode using the -d / --device argument.

-b / --batch-size BATCH

Additionally, you can adjust the batch size using the -b / --batch-size argument. This argument defines the number of samples that will be propagated through the Splam network. By default, the batch size is set to 10. We recommend setting a small batch size (for instance 2) when running Splam in cpu mode.

-o / --outdir DIR

The directory where the output file is written to. The default output directory is tmp_out. This argument is same as the one in Step 2. Note that if you set your own output directory, you have to set the same output directory for this step as well. Otherwise, Splam will not be able to find some essential temporary files. We recommend users not to set this argument and use the default value.


Step 4: Cleaning up your alignment file

After scoring every splice junction in your alignment file, the final step of this analysis is to remove alignments with low-quality splice junctions and update ‘NH’ tags and flags for multi-mapped reads. You can pass the directory path to Splam using the clean mode, which will output a new cleaned and sorted BAM file. The implementation of this step utilizes the core functions of samtools sort and samtools merge. If you want to run this step with multiple threads, you can set the -@ / --threads argument accordingly.

splam clean -P -o tmp_out_alignment -@ 5

Output: cleaned.bam

The output file of this step is a sorted Splam-cleaned BAM file. You can replace the original BAM file with this cleaned BAM file to do the transcript assembly, quantification, and all other downstream analyses!

Splam score threshold suggestion

For cleaning up BAM alignment files, we advise using a more lenient score threshold of 0.1. That being said, Splam is a decisive model and performs quite consistently across a wide range of thresholds, so a score threshold between 0.1 to 0.9 would work well.

Here are some optional arguments:

-P / --paired

This argument bundles and pairs alignment reads. If your sample is paired-end RNA-Seq, you should run Splam with this argument to ensure more accurate flag updates. Note that you should be consistent in setting this argument as described in Step 2.

-t / --threshold threshold

This is the score cutoff threshold for Splam to determine whether a given splice junction is spurious (discarded) or not. It is a floating-point value between 0 and 1. If the score of either the donor or acceptor site falls below this value, then any spliced alignments containing this junction will be removed. The default threshold is set to 0.1.

-@ / --threads threads

Splam utilizes the sorting, compression, and merging scripts from samtools. You can enable multi-threading for the final stage of BAM file sorting and merging by setting this argument. The more threads, the more efficient the operation, but also the more resource overhead. By default, the operation is performed in single-thread.

-o / --outdir DIR

The directory where the output file is written to. The default output directory is tmp_out. This argument is same as the one in Step 2 and Step 3. Note that if you set your own output directory, you have to set the same output directory for this step as well, or otherwise, Splam will not be able to find some essential temporary files. We recommend users not to set this argument and use the default value.


Step 5: IGV visualization

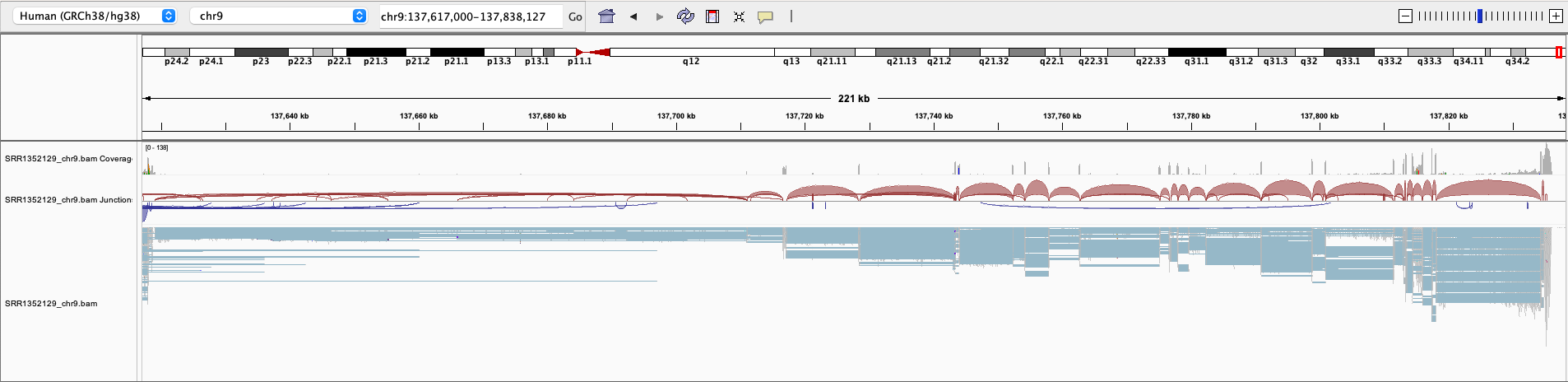

Here is an example of the EHMT1 gene locus on chromosome 9 visualized in IGV. This protein-coding gene is located on the forward strand; however, we have observed that the splice aligner generates several splice alignments on the reverse strand.

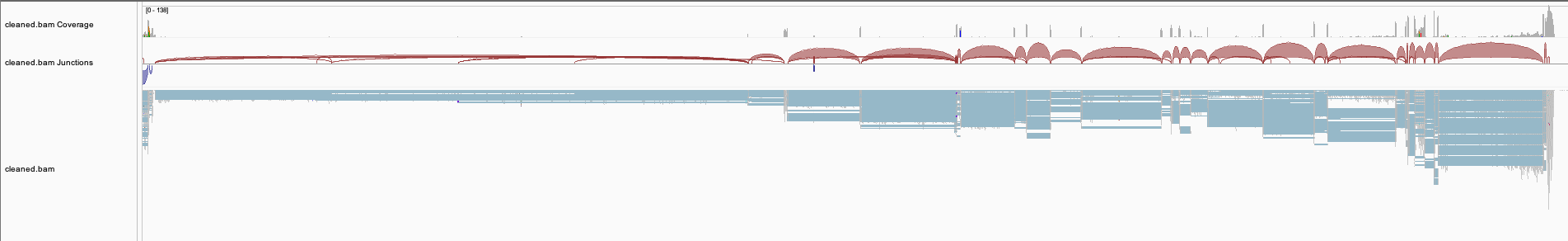

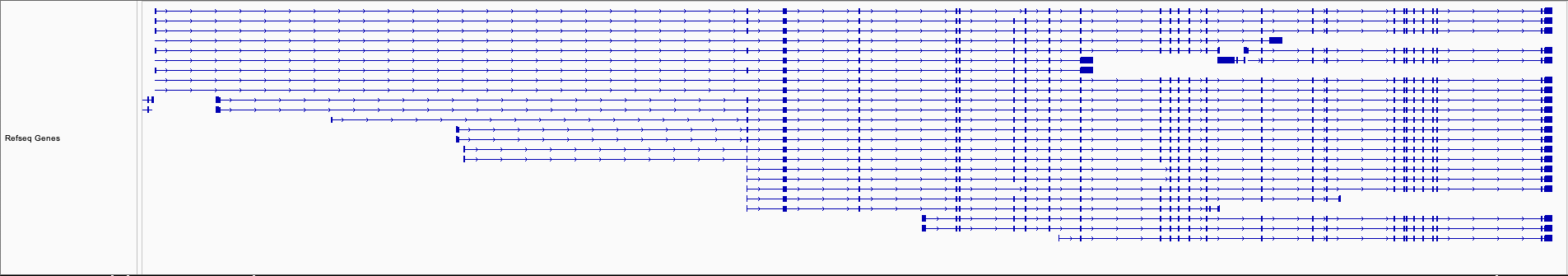

In Figure 2, the first three tracks display the coverage, splice junction, and alignment information from the original alignment file of the SRR1352129 sample. The fourth, fifth, and sixth tracks show the coverage, splice junction, and alignment data obtained from the cleaned alignment file of the SRR1352129 sample, which was generated using Splam. Many of the spliced alignments on the reverse strand of EHMT1 have splice junctions with low Splam scores and were consequently removed. The Splam removal procedure results in a more refined gene locus and enhances the transcriptome assembly. The final track represents the RefSeq annotations of the EHMT1 gene.

../_images/figure_S_EHMT1_original.png
../_images/figure_S_EHMT1_cleaned.png
../_images/figure_S_EHMT1_annotations.png

Figure 2 An example of a BAM file before and after Splam cleanup.

Important

Splam exclusively employs the strand information to extract the reverse complement of DNA sequences for splice junctions when necessary. When it comes to scoring splice junctions, Splam relies solely on the DNA sequence information.

In the above example, Splam can distinguish that the majority of splice junctions aligned on the opposite strand of the EHMT1 gene locus are of poor quality. This final score is drawn by simply examining the DNA sequence!


Step 6: Assembling alignments into transcripts

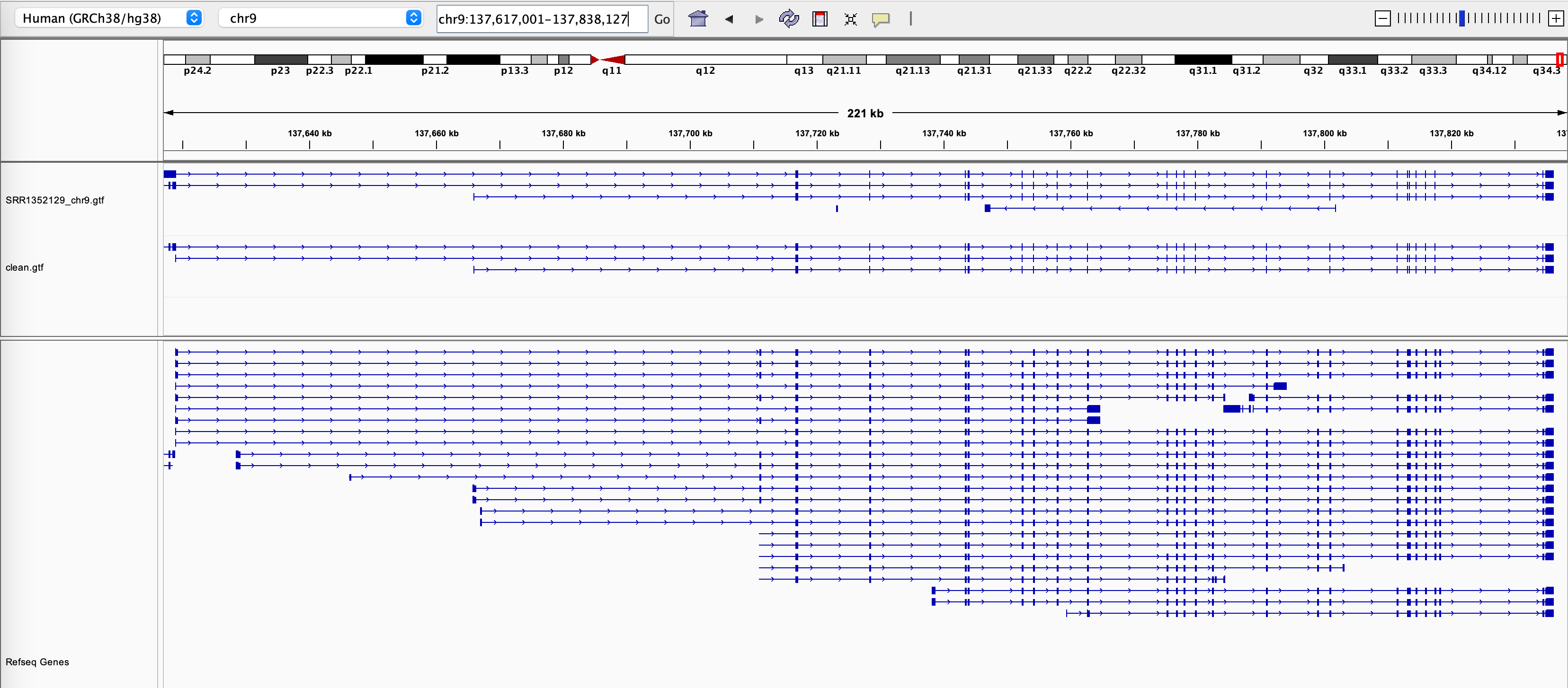

We ran Stringtie to assemble the original alignment BAM file and the Splam-cleaned alignment BAM file. Subsequently, we loaded both sets of assembled transcripts along with the RefSeq annotation into IGV (Figure 3). Upon observation, we noted that at the EHMT1 gene locus, there was originally one transcript assembled on the opposite strand of this gene, which will no longer be assembled after applying Splam’s cleaning process, and the 3’ end of the transcripts become more accurate!

../_images/EHMT1_assembly.png

Figure 3 The assembly results of the original alignment file and the Splam-cleaned alignment file.

See also

  • StringTie to learn more about the transcriptome assembly


What’s next?

Congratulations! You have finished this tutorial.
