variant¶

The variant subcommand evaluates the impact of genomic variants (SNPs and small INDELs) on splice sites by comparing model predictions on the reference (wild-type) sequence to predictions on the altered (mutant) sequence. It annotates a VCF file with “delta” scores for four events—acceptor gain, acceptor loss, donor gain, and donor loss—along with the relative position of each event. These delta scores reflect how much the mutation modifies the model’s predicted splice site strength and location.

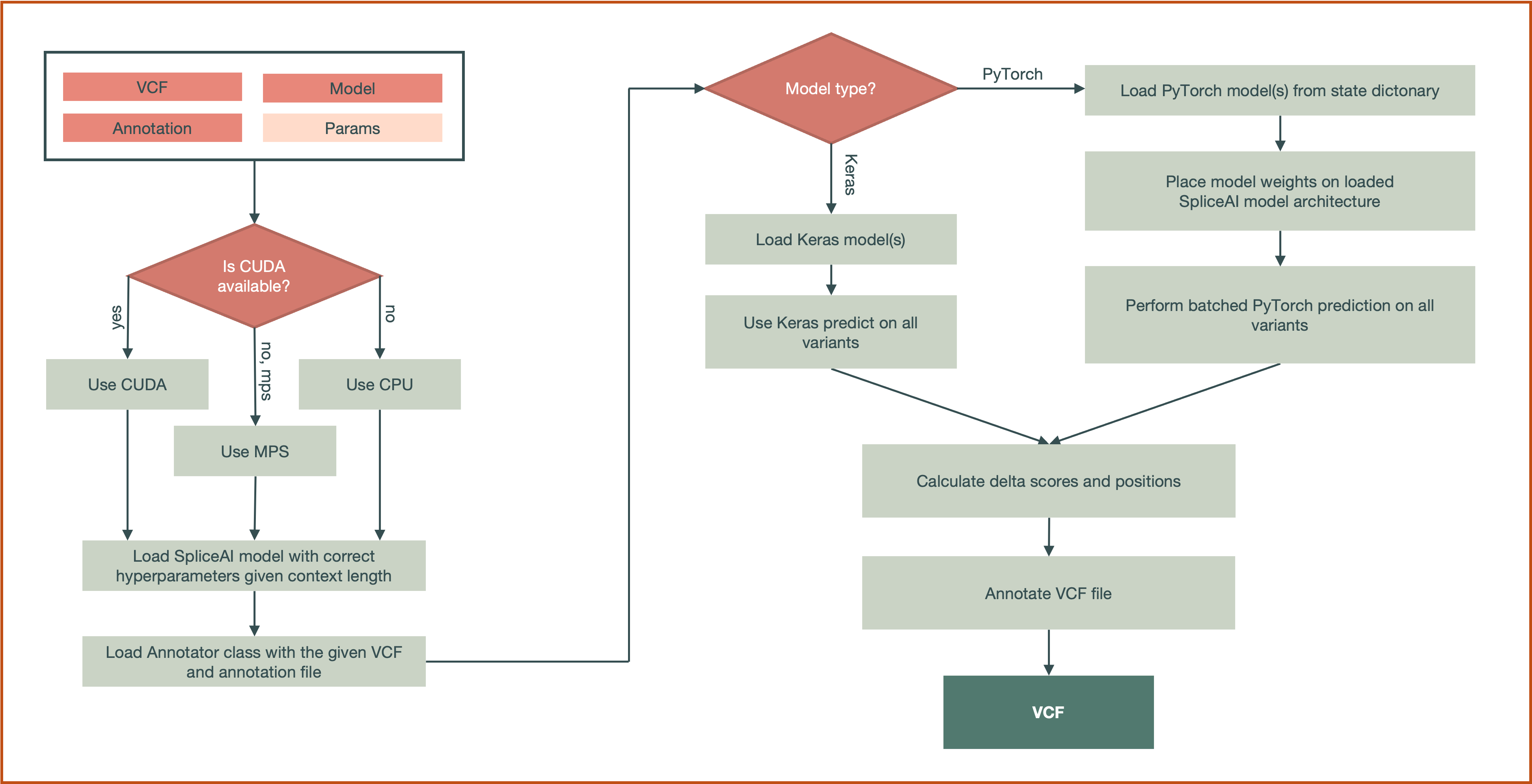

Overview¶

Similar to SpliceAI’s variant annotation approach (Jaganathan et al., 2019), the variant subcommand:

Parses a user-provided VCF file.
Retrieves the reference genome context from a FASTA file.
Loads a trained OpenSpliceAI model (PyTorch or Keras).
Predicts splice site probabilities for both wild-type and mutated sequences.
Computes the maximum change in donor or acceptor probability (delta scores) within a fixed window (default ±50 nt) around each variant for each event.
Outputs an annotated VCF, including delta scores and delta positions for each allele.

Input Files¶

VCF File

A standard VCF file containing variants (SNPs, small insertions, and deletions).
Reference Genome (FASTA)

A FASTA file used to extract wild-type sequences. The subcommand checks that the reference allele in the VCF matches the reference genome.
Annotation File

A gene annotation table that defines the genomic regions to consider. You may pass the built-in shortcuts grch37 (GENCODE V24lift37 canonical) or grch38 (GENCODE V24 canonical) — these tables ship inside the package (openspliceai/variant/annotations/{grch37,grch38}.txt) and are resolved automatically regardless of the current working directory — or supply a path to your own custom annotation file in the same format. Variants outside of annotated genes or too close to the chromosome ends (by default, within the flanking region) are skipped.
Trained Model Checkpoint(s)

A directory or file containing one or more OpenSpliceAI model checkpoints (PyTorch .pt or Keras .h5). The subcommand can average predictions across multiple models.

Output Files¶

The primary output is a VCF file with added OpenSpliceAI annotations for each variant that passes filtering. Only SNVs and simple INDELs (REF or ALT is a single base) within genes are annotated. Variants in multiple genes have separate predictions for each gene. Each variant line in the annotated VCF contains a string in the INFO field with the format:

ALLELE|SYMBOL|DS_AG|DS_AL|DS_DG|DS_DL|DP_AG|DP_AL|DP_DG|DP_DL

Field	Description
ALLELE	Alternate allele
SYMBOL	Gene symbol
DS_AG	Delta score (acceptor gain)
DS_AL	Delta score (acceptor loss)
DS_DG	Delta score (donor gain)
DS_DL	Delta score (donor loss)
DP_AG	Delta position (acceptor gain)
DP_AL	Delta position (acceptor loss)
DP_DG	Delta position (donor gain)
DP_DL	Delta position (donor loss)

Delta Scores: Acceptor gain, acceptor loss, donor gain, and donor loss. The scores range from 0 to 1, and can be interpreted as the probability of the variant being splice-site-altering.
Delta Positions: Relative positions (±50 by default) of these maximum changes. Positive values are downstream, negative values are upstream.

For example, .. code-block:: text

A|MYGENE|0.27|0.00|0.09|0.02|3|-4|7|-2

This string shows: - Alternate allele is A - We are on MYGENE - The base positon 3 downstream of the variant has the highest acceptor gain score of 0.27 - The base position 4 upstream of the variant has the highest acceptor loss score of 0.00 (no loss) - The base position 7 downstream of the variant has the highest donor gain score of 0.09 - The base position 2 upstream of the variant has the highest donor loss score of 0.02

Delta Score Computation¶

The “delta” score measures how much a mutation changes splice site predictions within a fixed window around the variant (default ±50 nucleotides, adjusted by -D parameter). For each variant, we compute reference predictions (\(d_{ref}\), \(a_{ref}\)) and alternative predictions (\(d_{alt}\), \(a_{alt}\)) for donor (\(d\)) and acceptor (\(a\)) channels:

(1)¶\[\mathrm{DS}(\mathrm{Acceptor\,Gain}) = \max\bigl(a_{alt} - a_{ref}\bigr)\]

(2)¶\[\mathrm{DS}(\mathrm{Acceptor\,Loss}) = \max\bigl(a_{ref} - a_{alt}\bigr)\]

(3)¶\[\mathrm{DS}(\mathrm{Donor\,Gain}) = \max\bigl(d_{alt} - d_{ref}\bigr)\]

(4)¶\[\mathrm{DS}(\mathrm{Donor\,Loss}) = \max\bigl(d_{ref} - d_{alt}\bigr)\]

where each maximum is taken over a window of 101 positions (±50) centered on the variant. The position of the maximum difference is recorded as the “delta position” (negative if upstream of the variant, positive if downstream).

Usage¶

usage: openspliceai variant [-h] -R reference -A annotation [-I [input]] [-O [output]] [-D [distance]] [-M [mask]] [--model MODEL]
                           [--flanking-size {80,400,2000,10000}] [--model-type {keras,pytorch}] [--precision PRECISION]
                           [--batch-size BATCH_SIZE]

optional arguments:
      -h, --help            show this help message and exit
      -R, --ref-genome reference
                              path to the reference genome fasta file
      -A, --annotation annotation
                              "grch37" (GENCODE V24lift37 canonical annotation file in package), "grch38" (GENCODE V24 canonical annotation file in package), or path to a similar custom gene annotation file
      -I, --input-vcf [input]
                              path to the input VCF file, defaults to standard in
      -O, --output-vcf [output]
                              path to the output VCF file, defaults to standard out
      -D, --distance [distance]
                              maximum distance between the variant and gained/lost splice site, defaults to 50
      -M, --mask [mask]     mask scores representing annotated acceptor/donor gain and unannotated acceptor/donor loss, defaults to 0
      --model, -m MODEL     Path to a SpliceAI model file, or path to a directory of SpliceAI models, or "SpliceAI" for the default model
      --flanking-size, -f {80,400,2000,10000}
                              Sum of flanking sequence lengths on each side of input (i.e. 40+40)
      --model-type, -t {keras,pytorch}
                              Type of model file (keras or pytorch)
      --precision, -p PRECISION
                              Number of decimal places to round the output scores
      --batch-size, -b BATCH_SIZE
                              Number of windows per GPU forward pass. >1 enables batched inference (pytorch only) for large speedups on many-variant inputs; 1 (default) preserves the exact original per-variant path

Batched inference (`--batch-size`)¶

By default (--batch-size 1) variant scores one window at a time, exactly reproducing the original per-variant code path. On a PyTorch model you can pass --batch-size N (with N > 1) to score many variants per forward pass, which gives large speedups on VCFs with many variants — especially on a GPU. The batched path is numerically equivalent to the default: it deduplicates the shared reference window across a position’s alternate alleles and groups windows by length so single-nucleotide and INDEL variants are handled correctly, then applies the same crop / argmax / mask / formatting steps.

Note

Batching only applies to PyTorch models. With --model-type keras the subcommand always uses the per-variant path regardless of --batch-size.
A good starting point on a GPU is --batch-size 32 to 256; larger batches use more GPU memory. On CPU, batching still helps but the gains are smaller.
Two optional environment variables tune throughput on NVIDIA GPUs: OSAI_CUDNN_BENCH=1 enables cuDNN autotuning (all windows share one length, so this is effective), and OSAI_TF32=1 (the default) enables the TF32 fast path on Ampere/A100 hardware. TF32 adds ~1e-3 of noise — far below the rounded score resolution — so set OSAI_TF32=0 if you need output that is bit-for-bit identical to the per-variant path.

openspliceai variant \
   --input-vcf many_variants.vcf \
   --ref-genome GRCh38.fa \
   --annotation grch38 \
   --model /path/to/pytorch_models/ \
   --model-type pytorch \
   --flanking-size 10000 \
   --batch-size 64 \
   --output-vcf annotated_variants.vcf

Examples¶

Example: Discovering pathogenic human variants¶

openspliceai variant \
   --input-vcf input_variants.vcf \
   --ref-genome GRCh38.fa \
   --annotation grch38 \
   --model /path/to/pytorch_models/ \
   --model-type pytorch \
   --flanking-size 400 \
   --distance 100 \
   --mask 1 \
   --output-vcf annotated_variants.vcf

This command:

Loads the reference genome from GRCh38.fa.
Reads the built-in grch38 gene annotation that ships inside the package.
Scans the directory /path/to/pytorch_models/ for PyTorch checkpoints, averaging predictions from all found models.
Computes donor and acceptor delta scores within ±100 nucleotides of each variant.
Masks scores representing annotated acceptor/donor gain and unannotated acceptor/donor loss. (This is useful for novel/pathogenic variant discovery).
Writes a new VCF (annotated_variants.vcf) with the masked annotations for the four delta scores and positions in the INFO field.

Example: Annotating all variant in VCF¶

openspliceai variant \
   --input-vcf sample_variants.vcf \
   --ref-genome GRCh37.fa \
   --annotation grch37 \
   --model /path/to/keras_models/ \
   --model-type keras \
   --flanking-size 10000 \
   --output-vcf annotated_samples.vcf
   --precision 3
